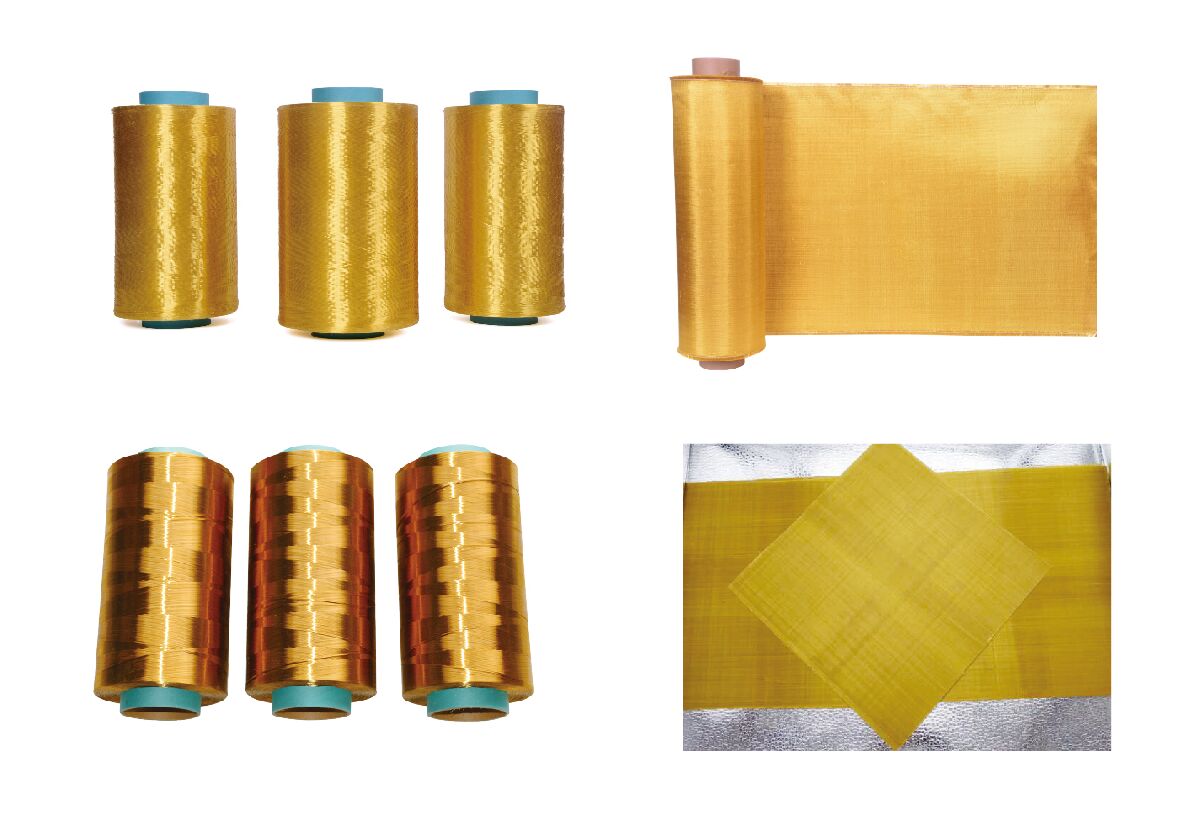

Polyimide filament

With the characteristics of High strength, high modulus, low density, impact resistance, corrosion resistance, UV resistance, high and low temperature, and low dielectric constant, Our PI fiber is widely used in the field of ocean, aerospace, security protection, communication and etc., especially with a huge potential to be used in bulletproof materials, ropes, and Skin material of space.

product manual
Model      Breaking strength

Initial  modulus

Elongation

Denier





GPa

cN/dtex

GPa

cN/dtex

%

(D)



S10T

0.7±0.1

5±0.7 8±2 57±5

10±2

100,1000,2500



S10M

1.0±0.1 7±0.7 11±2 80±5 10±2 100,1000,2500

S30

3.0±0.1 22±1 90±10 640±25 3.0±0.2 200,500,1000,1500

S30M

3.0±0.1 22±1 120±10 850±30 3.0±0.2 200,500,1000,1500

S35

3.5±0.1 25±1 120±10 850±30 3.0±0.2 100,200,500,1000,1500
